- Unitpcs
- Voltage10-36V DC
- Theoretical effect100W
- Consumption48,0W
- FunctionsHigh beam, dual position light, warning light
- Theoretical lumen 8000lm
- Actual lumen 2924lm
- 1 lux @442m
- Color temperature 5700K
- Beam patternOptimized beam
- Beam angle15,1°
- ConnectionCable
- Cable length2500mm
- Color housingBlack
- Color lensClear

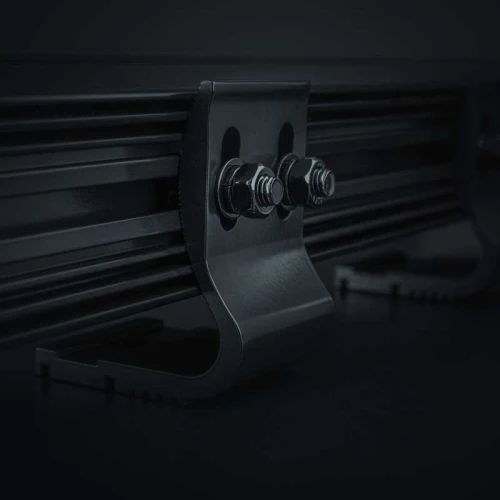

- Material bracketStainless steel
- Material housing/chassiAluminium
- Material lensPolycarbonate
- Length307mm
- Depth71,6mm
- Height76mm
- Height including bracket89mm
- Weight1,72kg
- IP-classIP67/69K
- Operating temperature-30 - +65°C
- E-approvedYes
- According to regulationECE R7, R65, R112
- Reference number45
- EMCECE R10
